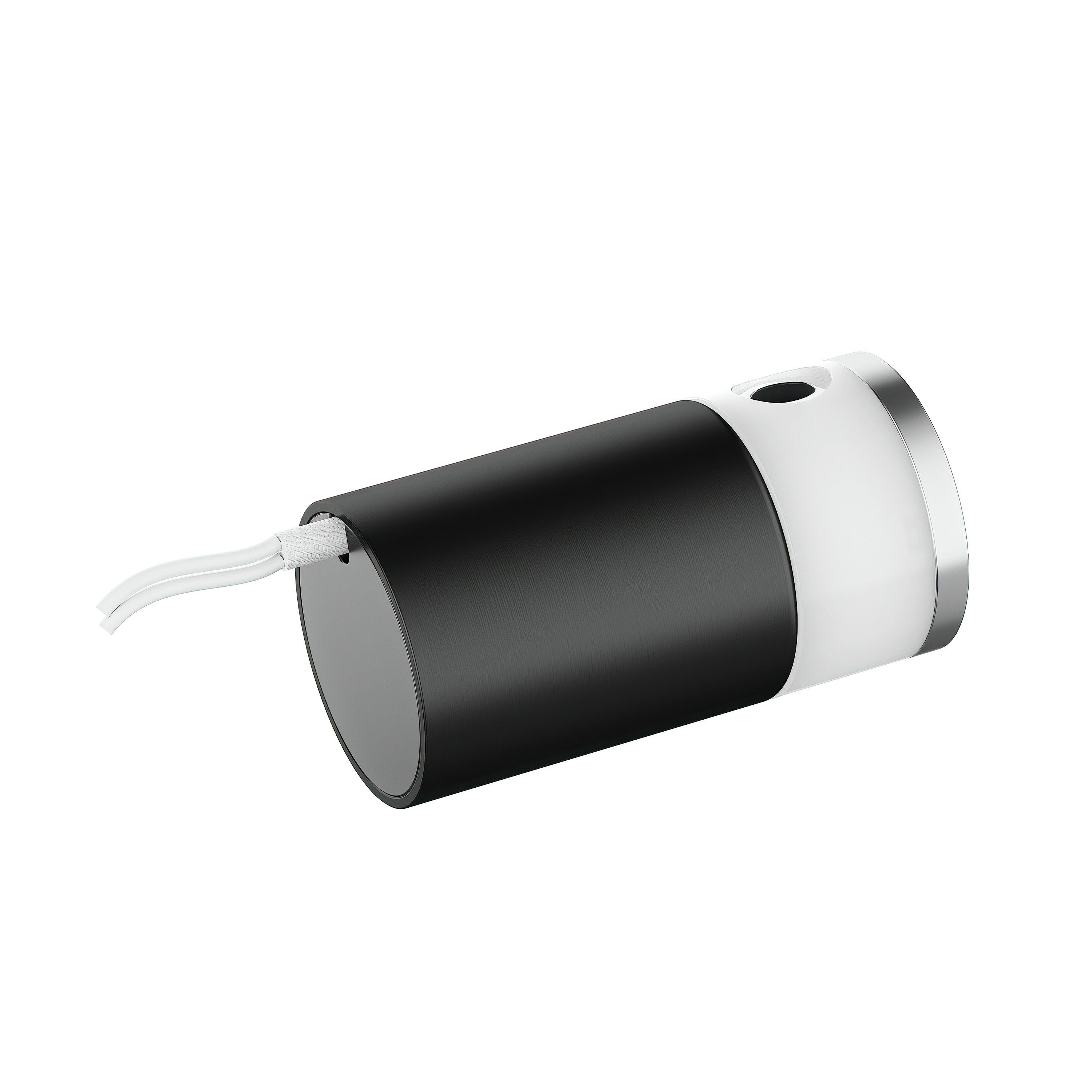

TR22W33
| 阀类型 / Valve Type | 直动式两位两通，常闭 Direct, 2 ports, normally closed |
| 通径 / Orifice Diameter | 1.6 MM |
| 阀身 / Body Material | PFA |
| 隔膜 / Diaphragm | PFA |
| 密封垫 / Gasket | FFKM |
| 工作压力 / Operating Pressure Range | 0～ 8 bar |
| 响应时间 / Response Time | 300ms |
| 介质温度 / Media Temperature Range | 5 ～ 180 ℃ |
| 环境温度 / Ambient Temperature Range | 5 ～ 40 ℃ |
| 密封性 / Leak Rate | in port 15 bar, out port 1 bar |
| 电压 / Voltage | 24 V DC Max |
| 导线带降压回路 / Voltage mitigate circuit on wires | 24V in, 10V hold |
| 功率 / Power Consumption | 3 W |
| 绝缘 / Insulation | 1500 VAC |
