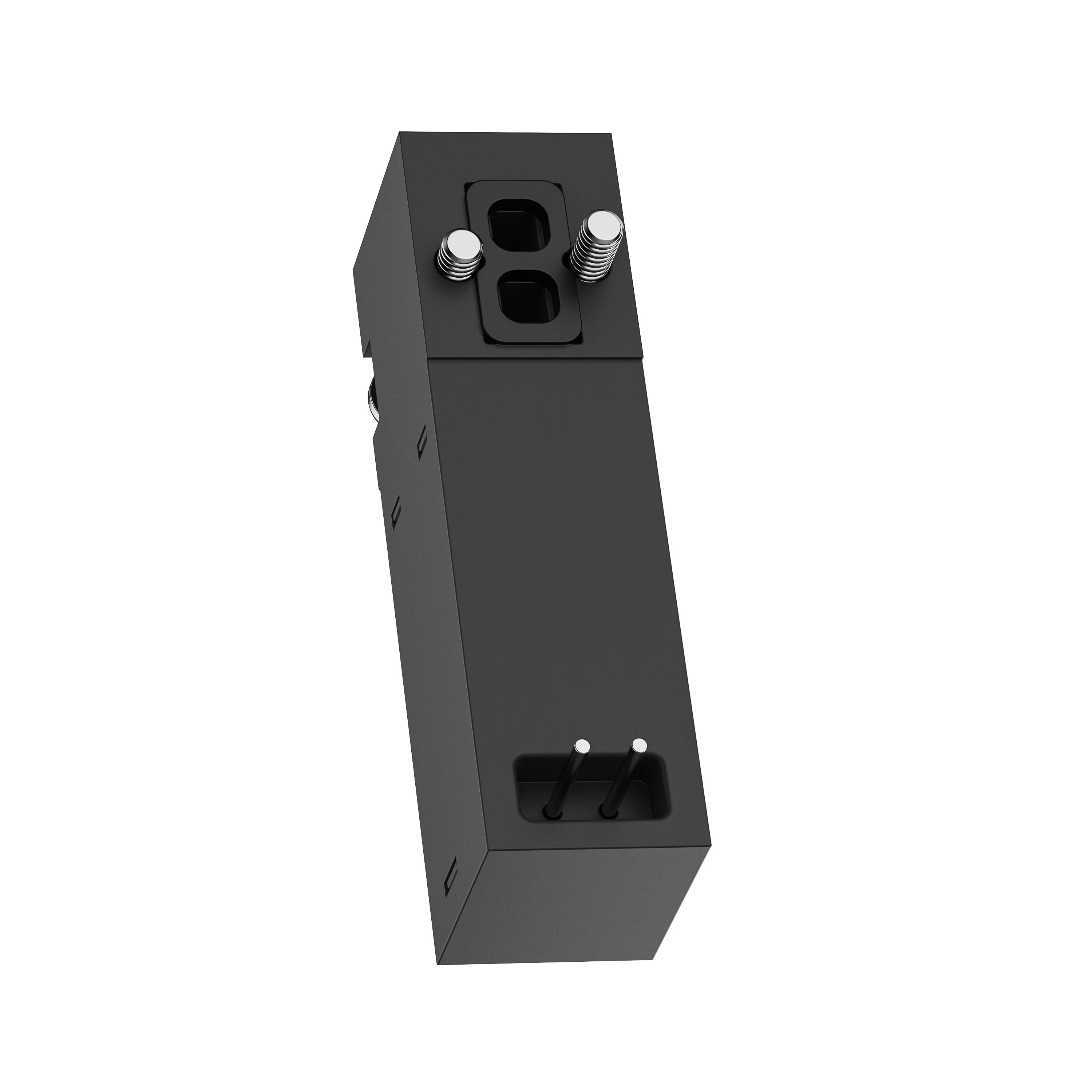

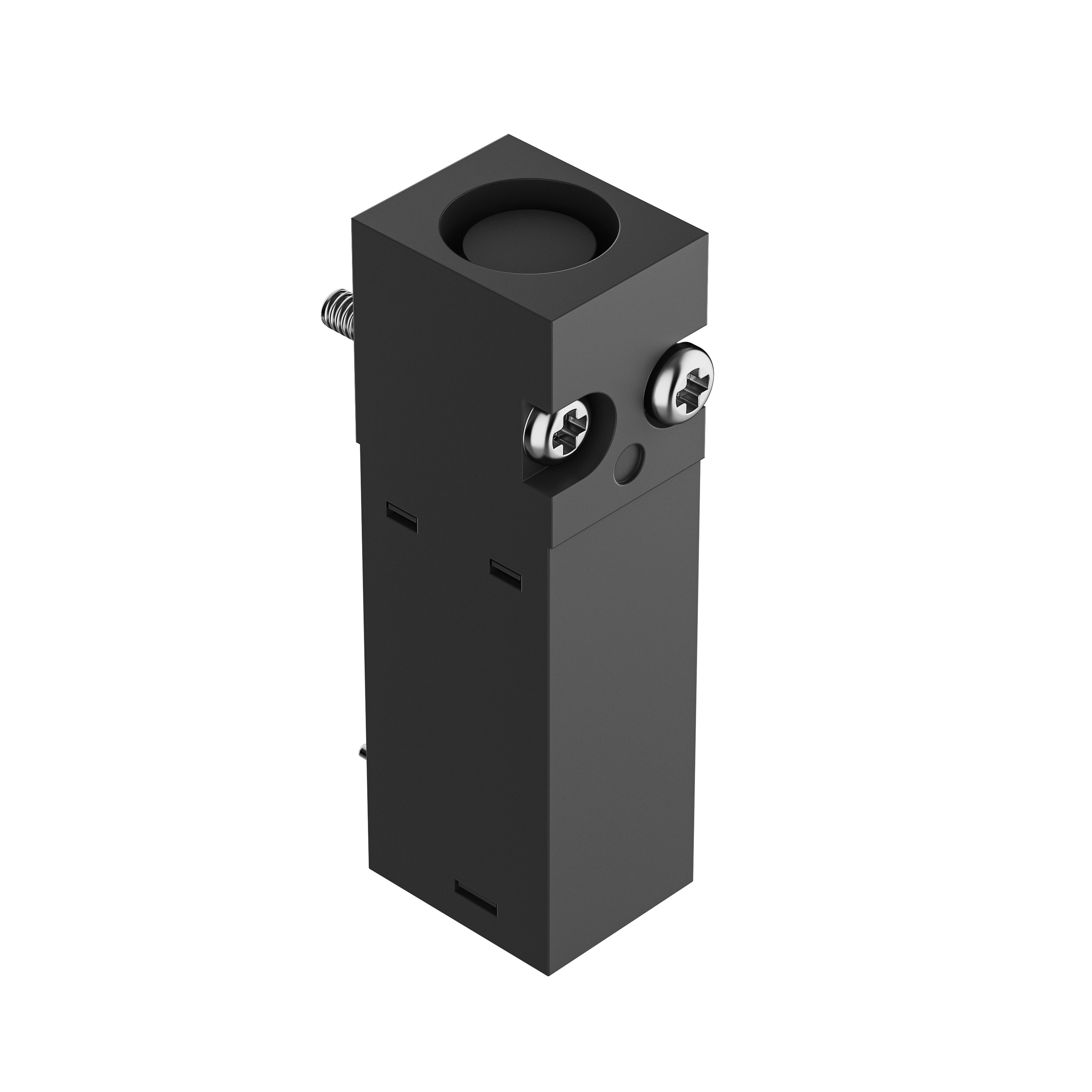

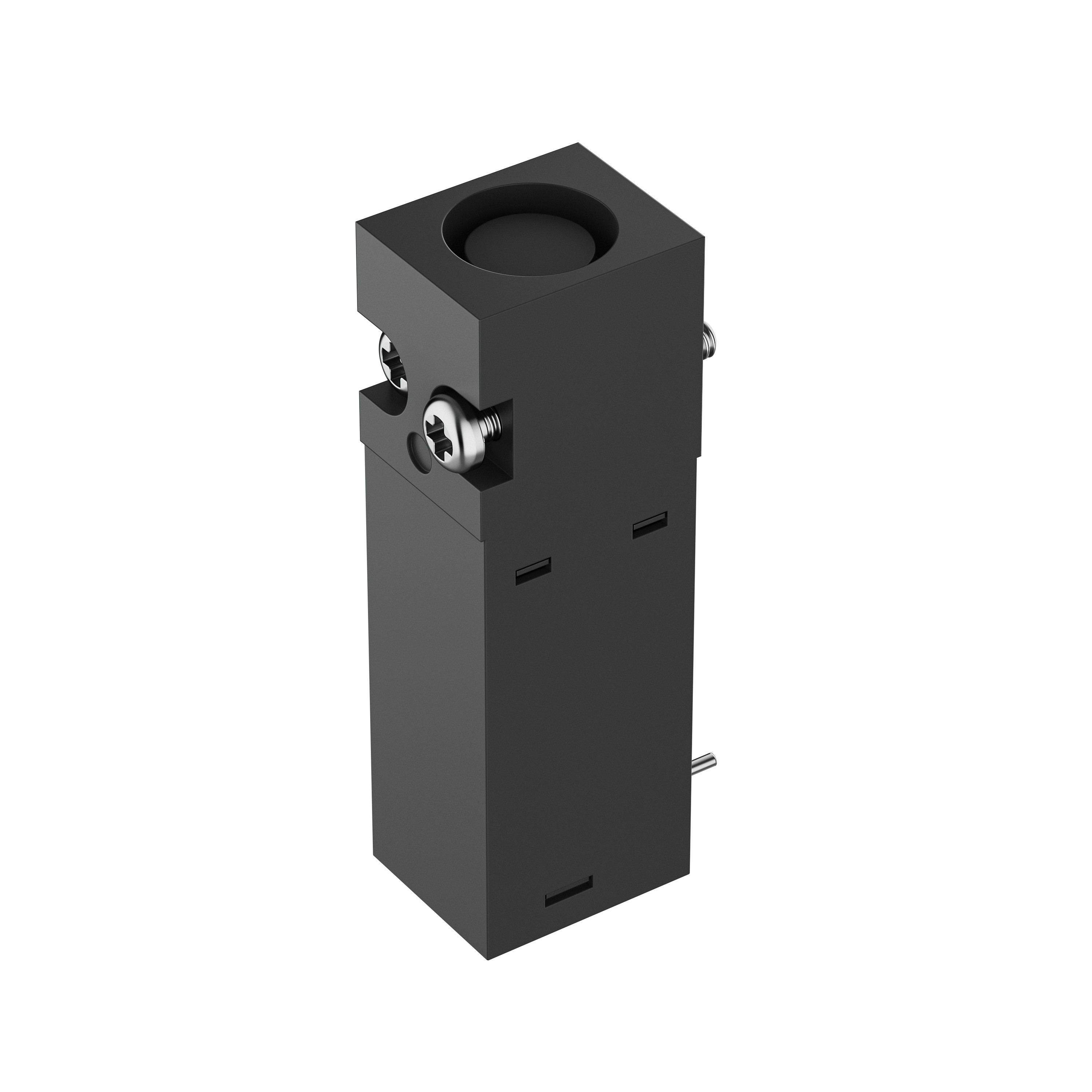

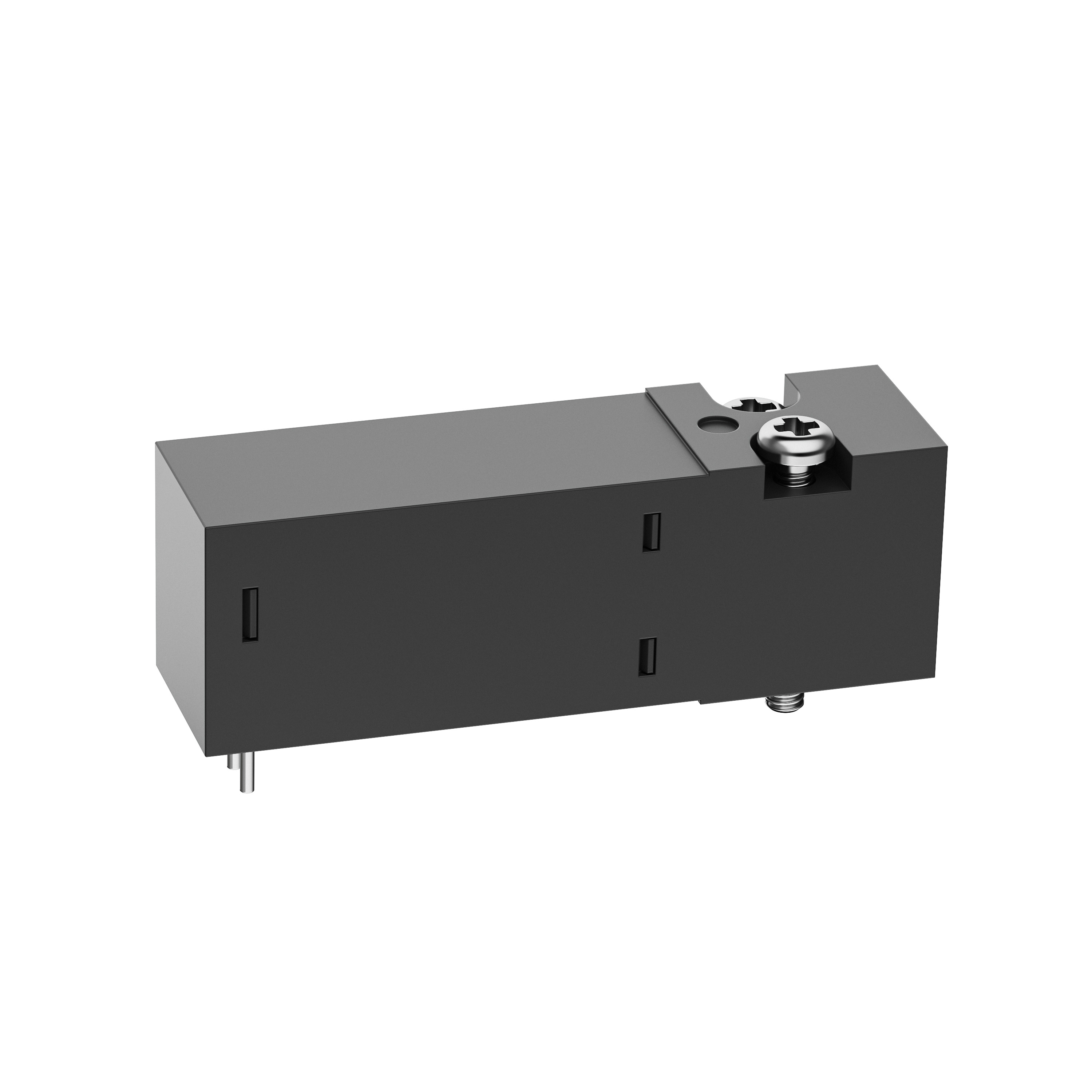

PI22T72
| 阀类型 / Valve Type | 直动式两位两通 Direct, 2 ports, normally closed |
| 通径 / Orifice diameter | 0.8 MM |
| 阀身 / Body material | PPS |
| 密封垫 / Gasket | FFKM |
| 工作压力 / Operating pressure range | -0.8 ～ 4 bar |
| 响应时间 / Response time | 30ms |
| 介质温度 / Media temperature range | 0 ～ 60 ℃ |
| 环境温度 / Ambient temperature range | 0 ～ 60 ℃ |
| 密封性 / Leak rate | 6bar气压无泄漏 Bubble tight at 6 bar |
| 寿命次数 / Cycles by lifetime | 7,000,000 |
| 电压 / Voltage | 24 V DC Max |
| 电阻 / Resistance | 72 ohm |
| 功率 / Power consumption | 8 W |
| 绝缘 / Insulation | 1000 VAC |
